Description
Brand: TOPSAIL
Model: TVF
Filling heads: 1
Filling volume: 20-500 (ml)
Production capacity: 10-30 (tanks / minute)
Filling accuracy: 1 (%)
Packing type: bottle
Working principle: negative pressure
Applicable objects: juice drinks, alcoholic beverages, mineral water, purified water, oils, cosmetics, cleaning, washing supplies, sauces, oral liquids, potions
Applicable industries: catering, food, daily chemical, medicine, tobacco, alcohol, chemical
Material type: liquid
Degree of automation: semi-automatic

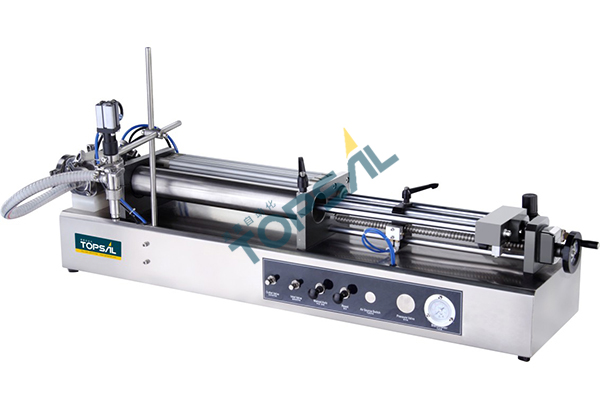

Single head horizontal liquid filling machine
This series of filling machine is a product that our company has transformed and innovated with reference to foreign advanced filling machine technology. Its structure is simpler and more reasonable, with higher accuracy and easier operation. Suitable for pharmaceutical, daily chemical, food, pesticide and special industries, it is an ideal equipment for filling high liquids.
The filling machine is a semi-automatic piston filling machine. The cylinder drives a piston to extract and eject the material, and the flow direction of the material is controlled by a check valve, and the stroke of the cylinder is controlled by a magnetic reed switch, so that the filling amount can be adjusted.
Features：
1. The machine is designed reasonably, the model is compact, and the operation is convenient;
2. The material contact parts are made of 304 stainless steel, which meets GMP requirements;
3.The filling volume and filling speed can be adjusted arbitrarily, and the filling accuracy is high;
4. The filling head adopts anti-drip device, and the filling head can be raised and lowered.
